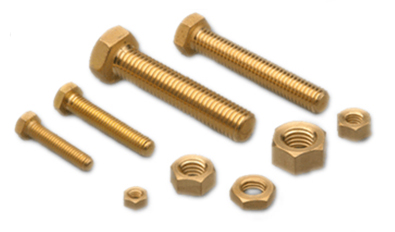

Brass Din 933 Bolts

Brass Din 933 Bolts

As one of the most basic types of fasteners, bolts are used across most industries and take a variety of forms based on the application. At Brass Screw Fasteners we produce Brass Din 933 Bolts at a very large quantity. We produce various nuts and bolts such as carriage bolts, nut bolts, anchor bolts, U bolts, eye bolts, etc. We produce a wide range of bolts and are exported to over 40 countries around the world including USA, UK and rest of Europe. We have a wide range of brass grades. Our working process includes cold forged, hot forged, machining, CNC machines and CNC machined fasteners. We always maintain ISO quality standards and specifications.


Specifications of Brass Din 933 Bolts:

Threads:
Metric, NPT, BSP, BSPT, NPTF, UNEF, UNS, UNF, BSF, UNC, NPS, NPSM, BSW

Sizes:
3mm, 4mm, 5mm, 6mm, 8mm, M28, M30, M32, M40, M50, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 1/2, 7/8, 3/4, 1, 11/4, 11/2, 2, 2/12,
10mm, 12mm, 16mm, 18mm, 20mm, 24mm, 25mm, 26mm, 28mm, 30mm, 32mm, 33mm, 40mm, 50mm, M3, M4, M5, M6, M8, m10, m12, m16, M18, M20, M24, M25, M26,

Grade Of Brass:
BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000 CDA 360 DZR Brass BS 2874 - CZ 131 CW 614 N EN 12164 BS 2874 - CZ 114 BS 2874 - CZ 115 c345, C 353, CDA 36000, c3602, c3604, c385

Brass Din 933 Bolts



S = Normally Stocked Item * = Contact For Availability

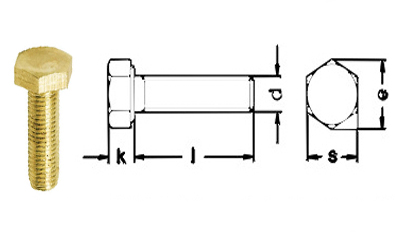

d e k s Length in (mm)
M6 11.05 4 10 16-50
M8 14.38 5.3 13 16-50
M10 18.9 6.4 17/16 20-50
